44. Recording inter-nodal loading

Direct Stiffness Method - Beam and Frame Analysis
1

Questions and discussion for this lecture live here. Fire away by hitting Reply below :fire:

2

Hi Dr Sean

  • I am wondering why we use simple formula ‘wl^2/12’ to calculate ‘Moment’ for inter-nodal loading. We solved stiffness matrix equations to calculate ‘Moment’ at primary nodes.
  • Locking the memeber with fixed-ends for inter-nodal loading is kind of standard procedure?

Thanks
Yan

3

We use this formula because we’re calculating the fixed-end moment that the inter-nodal loading will apply at each end of the loaded element. The stiffness method can only accommodate loading at a nodal point - so this is required when we have loading between nodes that we want to consider - otherwise the influence of this loading would not be captured.

4

Hey Sean, Very informative videos thanks for all your efforts in creating this content.

I was wondering what would the equivilant nodal forces look like for a UDL over a beam with one or both ends pinned?

Thanks.

5

Hey @Derek_Bailey

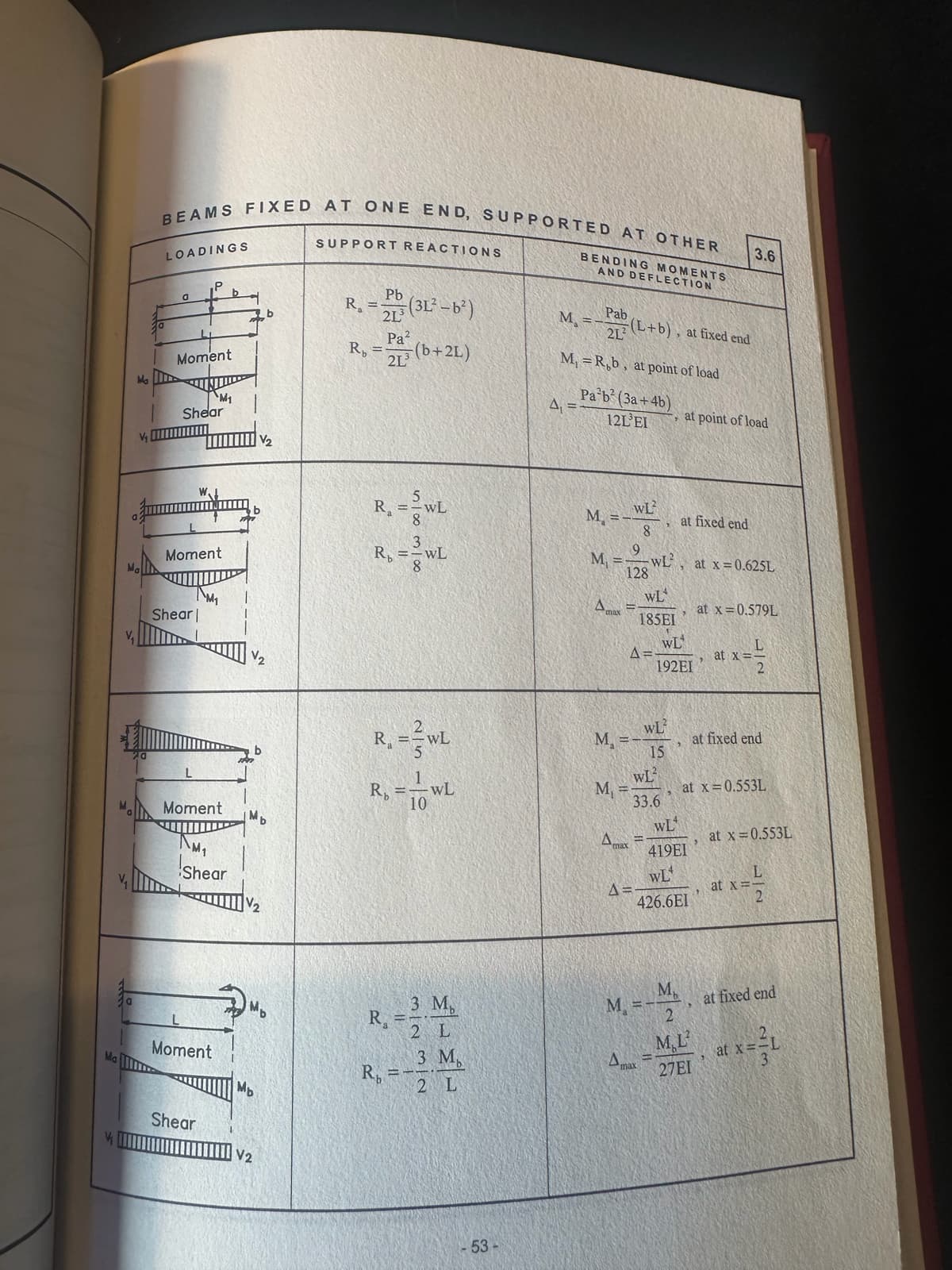

Naturally it will depend on the applied loading. You’ll be able to pull the required formulae out of any standard structures text, for example, this is a good one I’ve used for years…

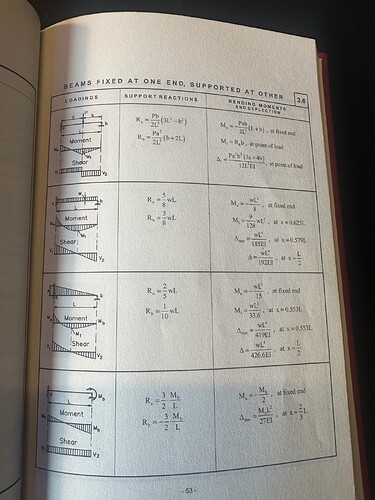

IMG_8160
IMG_81601200×1600 210 KB

IMG_8161
IMG_81611200×1723 142 KB

Hope that helps,
Seán
