What would the deflected shape of member BE look like, please?
Also, if a 90 degree angle is to be maintained at C, why isn’t this the case for joint B?
Many thanks
Hey,

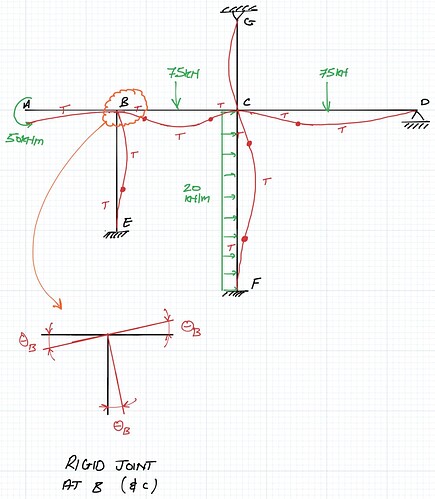

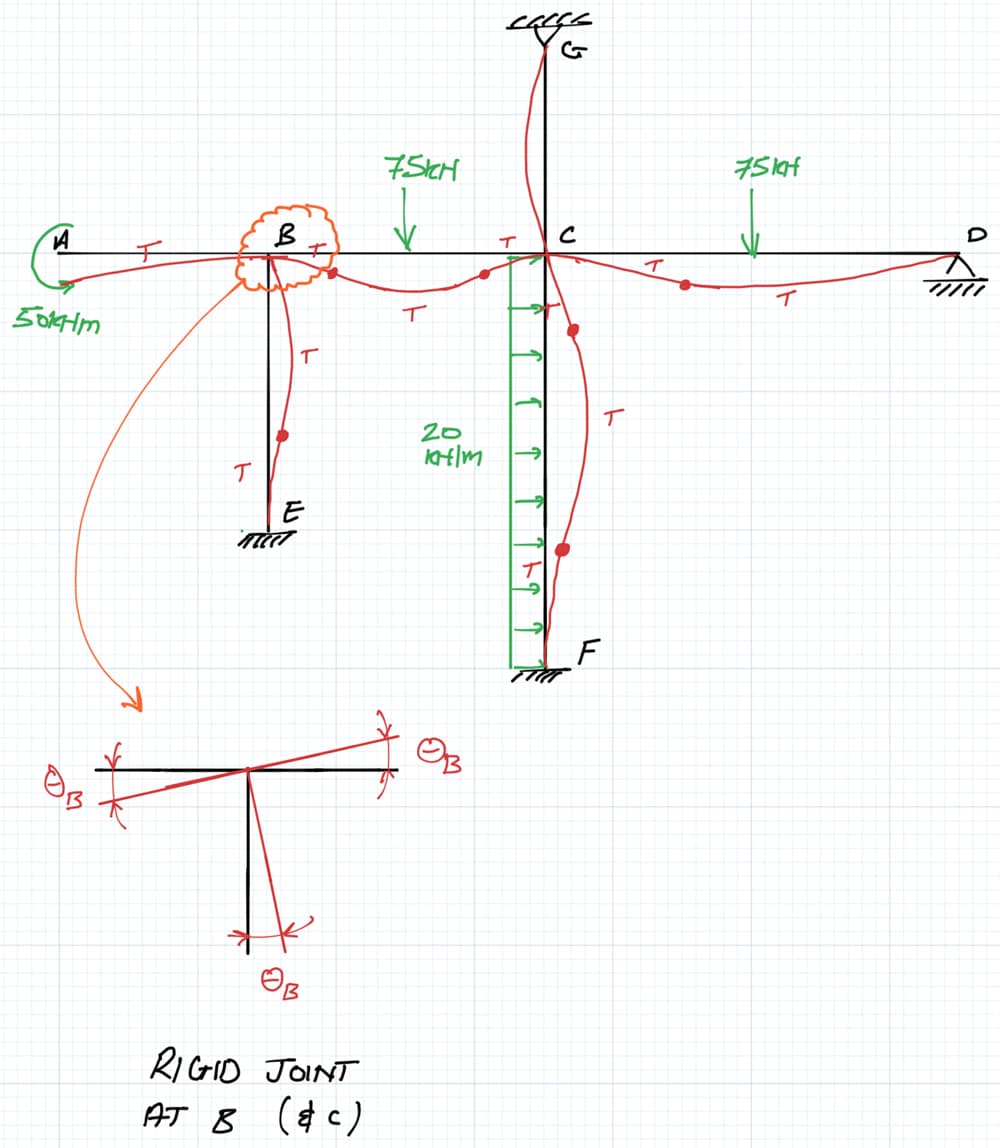

Seems I forgot to draw on the deflected shape for member BE, see the image attached.
Also note that you can download the finished SFD, BMD and deflected shape for each question (download them from the resources panel of lecture 21 for this question).
